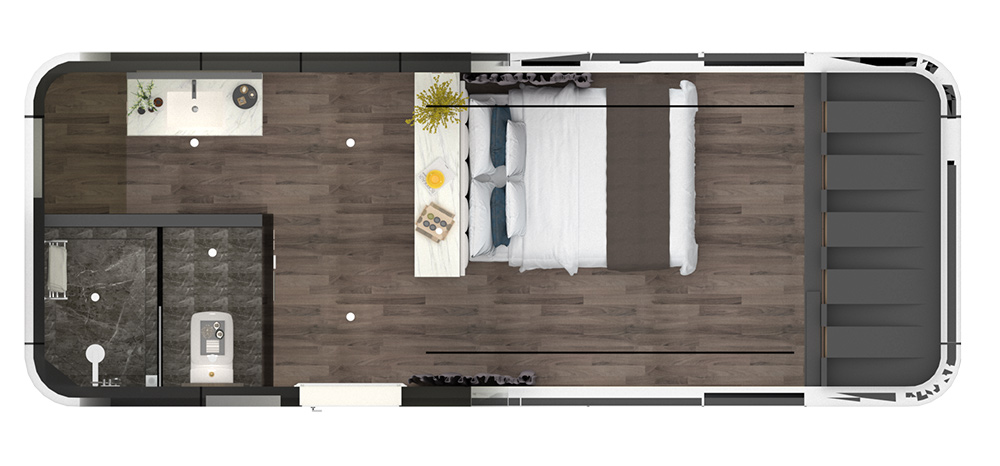

Top view

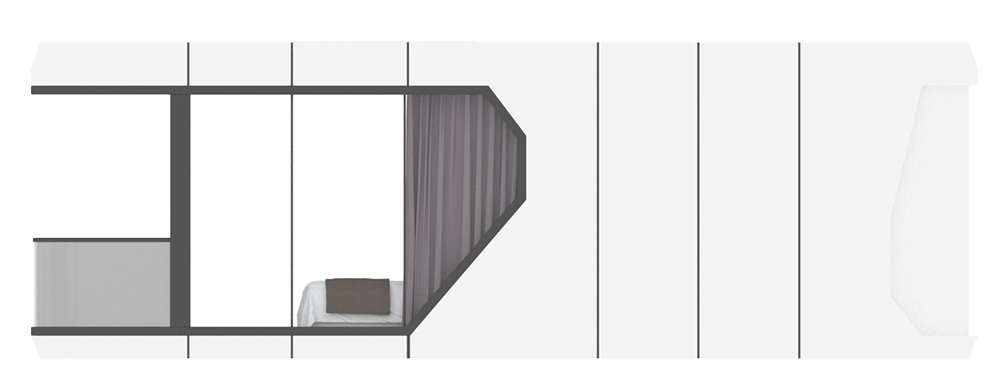

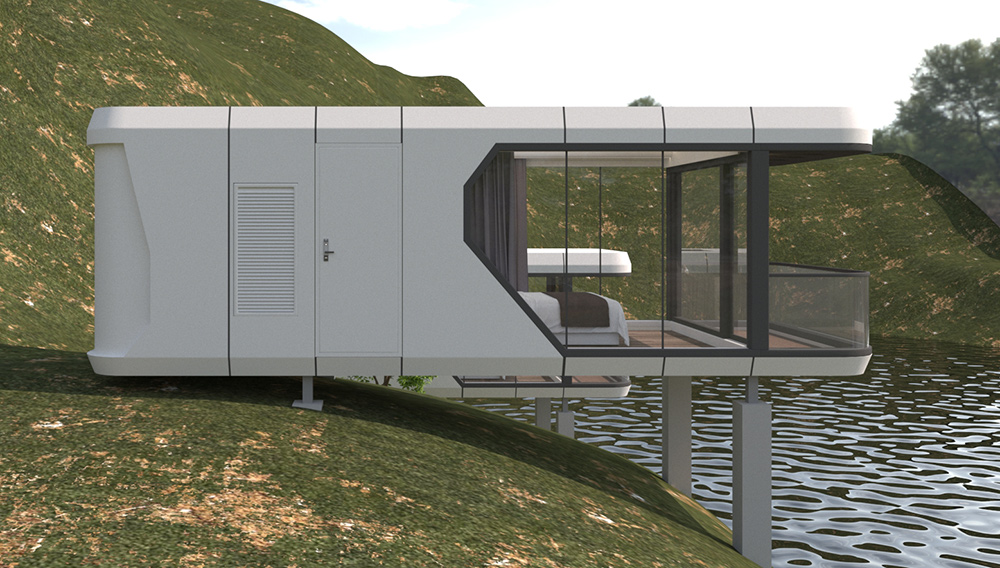

Right side image
Left side image
| Product model | ET5 |  |
| External dimensions | 8500mm long, 3300mm wide, and 3200mm high | |
| Land occupation area | 28.0㎡ | |
| Number of occupants | 2-4 people | |
Power consumption | Maximum power 10KW (without underfloor heating)/15KW (with underfloor heating) | |
| Approximately total weight | 7 tons | |
| Main peripheral structure | ||
| one | Steel structure frame | Steel structure frame |
| two | Exterior panel | 3.0mm aviation aluminum |
| three | Thermal insulation | 70m polyurethane insulation layer |
| four | External wall glass | 6+20A+6 hollow LOW-E glass |
five | Shell surface treatment (metal fluorocarbon paint baking paint) | Shell surface treatment (high attribute metal fluorocarbon paint baking paint) |
six | balcony | Panoramic balcony (10mm tempered glass) |
seven | Peripheral light strip | National standard LED waterproof energy-saving light strip decoration 20mm, 48W silicone peripheral light strip (surround atmosphere light strip) |
eight | Entrance door | Customized insulated and soundproof steel anti-theft door, smart card swiping lock, door lock treated with anti-corrosion and rust prevention |
| Environmental protection and fine decoration inside the cabin | ||
| nine | smallpox | 2.5mm aviation aluminum plate full package |
| ten | metope | 8mm 0Bs board+5m wood veneer |
| eleven | ground | 10mm premium wood grain lock buckle flooring |
| twelve | Indoor lighting effect | Linear lamp 20mm, 48W silicone lamp, with 3000K warm yellow light |
| thirteen | Outdoor lighting effect | Linear lamp 20mm, 48W silicone lamp, 4000K warm white light |
| fourteen | Curtain+track | Intelligent curtain track and lighting system only |
| bathroom hardware | ||
| fifteen | Toilet privacy door (frosted tempered glass) | Toilet privacy door (frosted tempered glass) |
| sixteen | Toilet | Ordinary ceramic/smart toilet |
| seventeen | shower head | Exquisite cold and hot nozzles |
| eighteen | Basin | Bathroom cabinet, under table basin, mirror box |
| nineteen | Hanger towel rack | 60 * 30mm clothes hanger towel rack |
| twenty | bibcock | Exquisite hot and cold faucets |
| Whole house equipment | ||
| twenty-one | air-conditioning | Variable frequency heating and cooling air conditioning |
| twenty-two | Electricity intake | Card insertion and power extraction+manual control switch |
| twenty-three | Water heater | 50L bucket water heater (American standard) |
| Smart Home Voice System Optional | ||
| twenty-four | Sound system, electric curtains, intelligent voice | Manual control (can control indoor/outdoor light strips, indoor lights, curtains, air conditioning) |
| Product accessories | ||
| twenty-five | Whole house water supply and drainage insulation protection system | Whole house water supply and drainage insulation protection system (heat tracing, insulation cotton) |
| Kitchen accessories | ||
twenty-six | Kitchen cabinet: Quartz stone countertop, solid wood particle board, 304 stainless steel vegetable washing basin, painted door panel, faucet | Customization (mandatory for kitchen) |
| Other featured configurations | ||
| twenty-seven | kickstand | National standard titanium steel: fixed foot support height of 200MM |
